Membrane Carport Steel Frame Installation in Xinmi, Zhengzhou

The steel frame of a membrane carport is being installed in Xinmi, Zhengzhou. Perforated columns, cantilever arms and longitudinal tubes run alongside a building; the membrane has not yet been fitted.

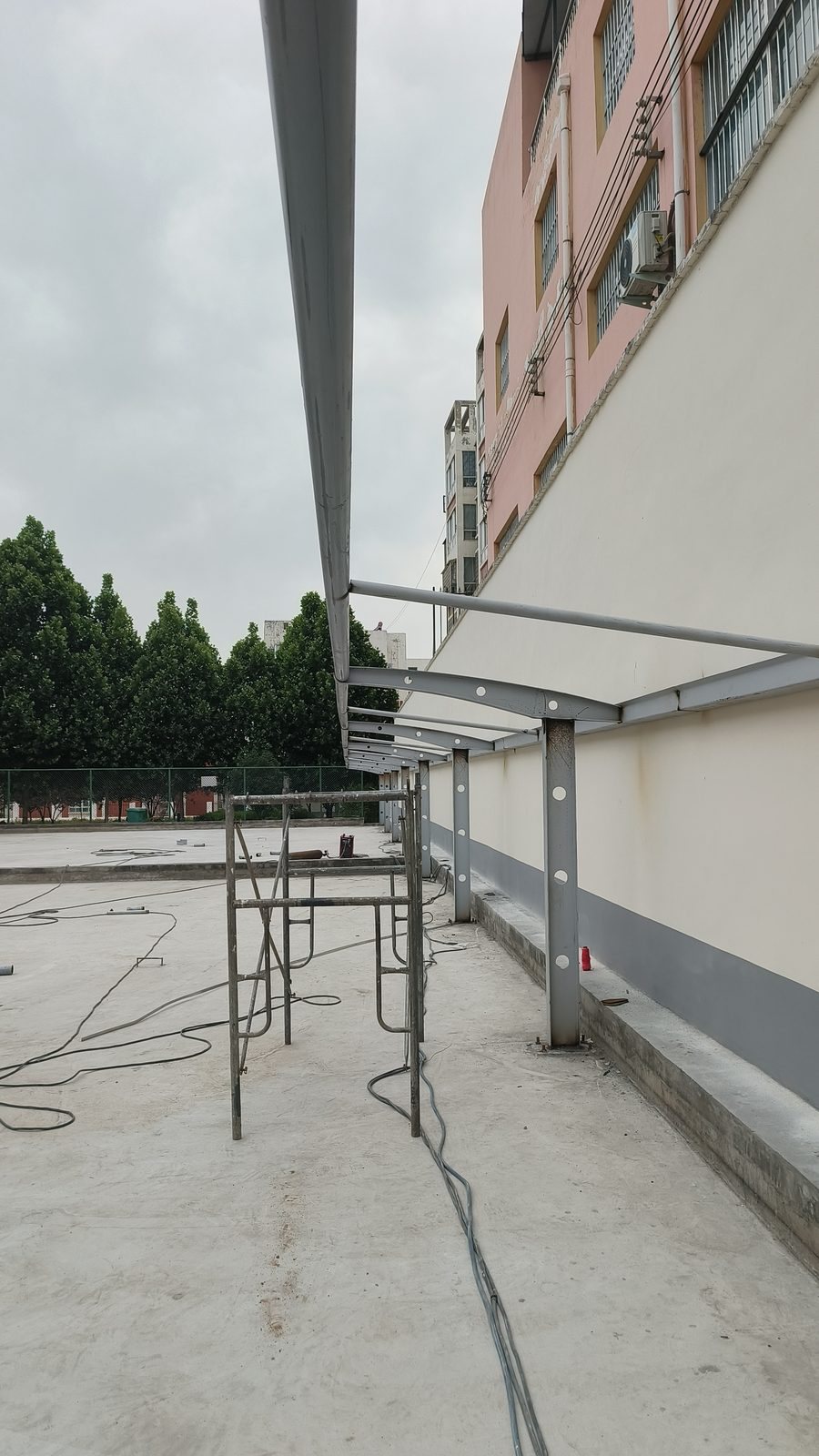

Repeated Frames Beside the Building

The steel frame of this membrane carport in Xinmi, Zhengzhou follows the outside wall of an existing building. Columns are installed close to the wall, with arms projecting into the courtyard and a longitudinal tube joining their outer ends. Repeated frames extend along the building, alongside its windows and exterior services, above the existing hardstanding.

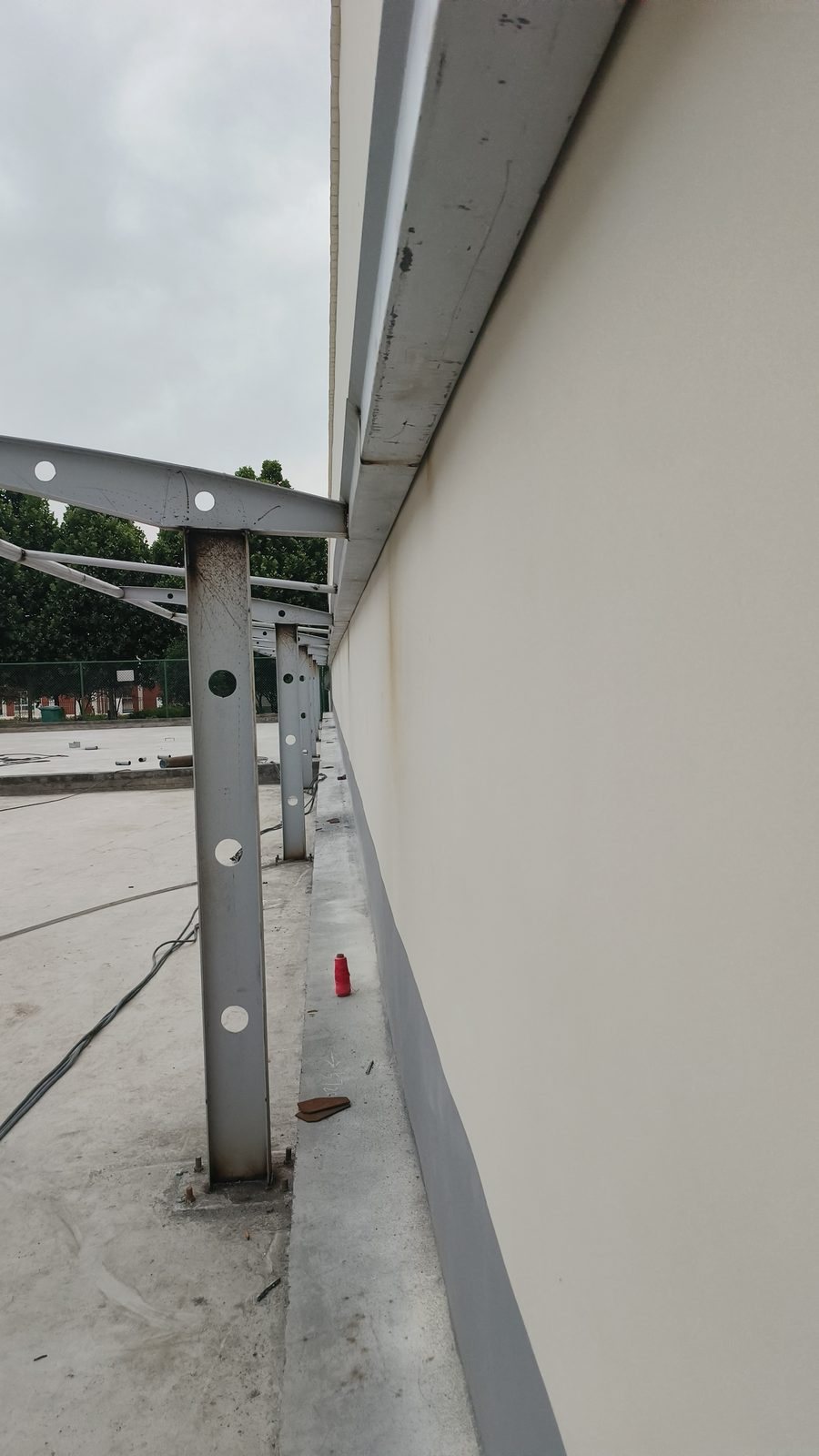

Perforated Columns Before Membrane Fitting

Circular openings run along the columns and cantilever arms, with longitudinal members connecting the repeated frames beside the building. The membrane has not yet been fitted, leaving the steel arrangement exposed. Mobile scaffolding, cables and small materials remain on site during frame installation, with the existing hardstanding and building wall visible alongside.
